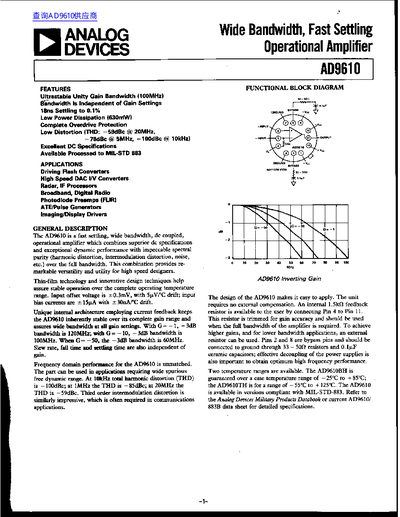

The document describes the AD9610, a fast settling, wide bandwidth, decoupled operational amplifier designed for high-speed applications. It combines superior DC specifications with exceptional dynamic performance and spectral purity over its full bandwidth.
Key features include an ultrastable unity gain bandwidth of 100MHz that is independent of gain settings, an 18ns settling time to 0.1%, and low power dissipation of 630mW. The device utilizes thin-film technology and current feedback architecture to ensure stable operation across its complete operating temperature range.
| Unity Gain Bandwidth | 100MHz |
|---|---|
| Settling Time to 0.1% | 18ns |
| Power Dissipation | 630mW |
| Input Offset Voltage | +/- 0.3mV |
The amplifier settles in 18ns to 0.1%. This value applies when the gain setting is -10.
The THD is -100dBc at 10kHz, -85dBc at 1MHz, and -59dBc at 20MHz.
