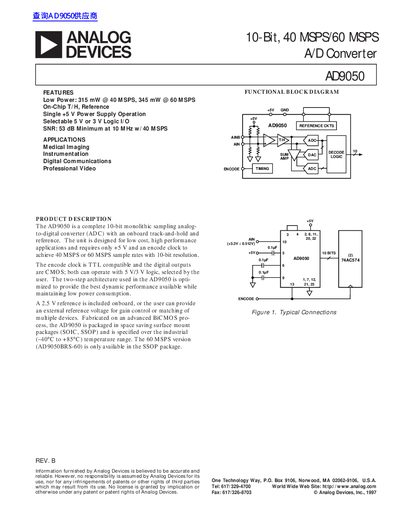

The AD9050 is a complete 10-bit monolithic sampling analog-to-digital converter (ADC) with an onboard track-and-hold and reference. The unit is designed for low cost, high performance applications and requires only +5 V and an encode clock to achieve 40 MSPS or 60 MSPS sample rates with 10-bit resolution. The encode clock is TTL compatible and the digital outputs are CMOS; both can operate with 5 V/3 V logic, selected by the user. The two-step architecture used in the AD9050 is optimized to provide the best dynamic performance available while maintaining low power consumption.
The AD9050 is a complete 10-bit monolithic sampling analog-to-digital converter (ADC) with an onboard track-and-hold and reference. It is designed for low cost, high performance applications such as medical imaging, instrumentation, digital communications, and professional video. The device requires only a +5 V power supply and an encode clock to achieve sample rates of 40 MSPS or 60 MSPS.
| Resolution | 10 Bits |
|---|---|
| Power Dissipation (40 MSPS) | 315 mW |
| Power Dissipation (60 MSPS) | 345 mW |
| Signal-to-Noise Ratio (SINAD) | 53 dB Minimum at 10 MHz |
| Operating Temperature Range | -40°C to +85°C |
The minimum conversion rate is 1.5 MSPS.
The minimum SNR is 53 dB when operating at 10 MHz with a 40 MSPS sample rate.
The maximum power dissipation is 400 mW for the BR and BRS versions.
