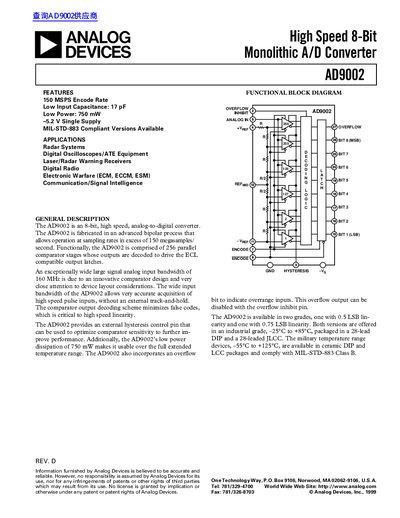

The AD9002 is an 8-bit, high-speed analog-to-digital converter. It is fabricated in an advanced bipolar process, allowing operation at sampling rates exceeding 150 megasamples/second. The AD9002 consists of 256 parallel comparator stages, whose outputs are decoded to drive ECL compatible output latches. An exceptionally wide large signal analog input bandwidth of 160 MHz is achieved through innovative comparator design and careful attention to device layout considerations.
The AD9002 is an 8-bit, high-speed analog-to-digital converter fabricated in an advanced bipolar process. It supports sampling rates exceeding 150 megasamples per second and features a wide large signal analog input bandwidth of 160 MHz. The device utilizes 256 parallel comparator stages decoded to drive ECL-compatible output latches, minimizing false codes for high-speed linearity.
| Resolution | 8 Bits |
|---|---|
| Sampling Rate | 150 MSPS |
| Input Capacitance | 72 pF |
| Nominal Power Dissipation | 750 mW |
Yes, it is an electrostatic discharge (ESD) sensitive device that requires proper precautions during handling.
The device supports an encode rate in excess of 150 megasamples per second.
The device has a low power dissipation of 750 mW.
