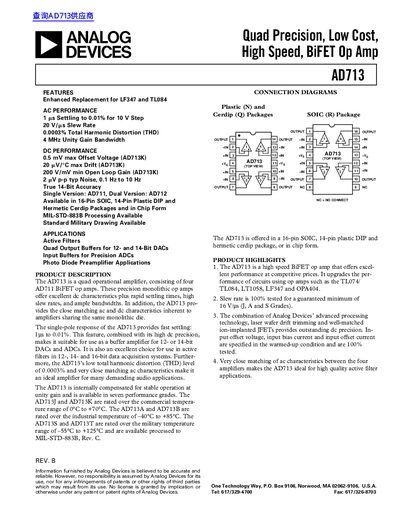

The AD713 is a quad operational amplifier, consisting of four AD711 BiFET op amps. These precision monolithic op amps offer excellent dc characteristics plus rapid settling times, high slew rates, and ample bandwidths.
The AD713 is a quad operational amplifier consisting of four AD711 BiFET op amps. It offers excellent DC characteristics, rapid settling times, high slew rates, and ample bandwidths. The device provides close matching AC and DC characteristics inherent to amplifiers sharing the same monolithic die.
| Slew Rate (Min) | 16 V/µs |
|---|---|
| Unity Gain Bandwidth | 3.0 MHz |
| Settling Time to 0.01% | 1.2 µs |
| Total Harmonic Distortion | 0.0003% |
| Input Offset Voltage (Typ) | 1.5 mV |
The slew rate is guaranteed to be a minimum of 16 V/µs.
A minimum bypass capacitance of 0.1 µF should be used.
The absolute maximum supply voltage is ±18 V.
