Packaged in the SOT223 outline this new low saturation 100V NPN transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions.

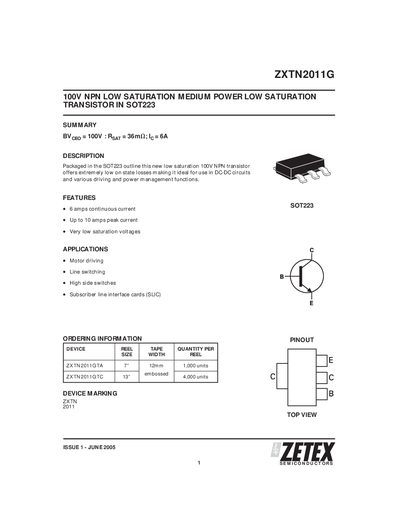

This document is a technical datasheet for the Zetex ZXTN2011G, an NPN transistor packaged in the SOT223 outline. It features extremely low on-state losses and is designed for use in DC-DC circuits, driving functions, and power management applications such as motor driving and line switching.
The datasheet provides comprehensive electrical characteristics, including absolute maximum ratings, safe operating area curves, and typical performance graphs under various temperature conditions.
| Collector-Emitter Voltage (BVceo) | 100 V |
|---|---|
| Continuous Collector Current (Ic) | 6 A |
| Peak Pulse Current (Icm) | 10 A |
| Package Type | SOT223 |
| Operating Temperature Range | -55 to +150 °C |
The power dissipation at Tj=25°C is 3.0 W for a specific PCB configuration.
The device supports a continuous collector current of 6 amps.
The device operates and stores within a range of -55 to +150 °C.
