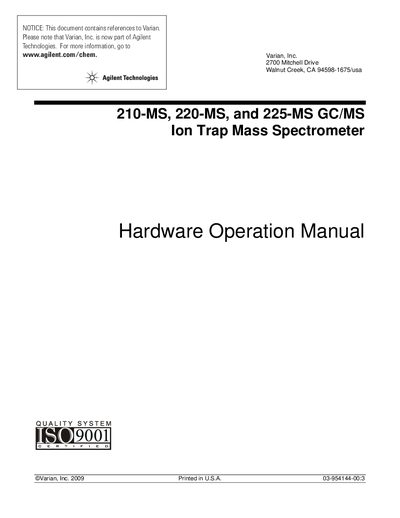

Agilent 210-MS/220-MS/225-MS GC/MS Ion Trap Mass Spectrometer Hardware Operation Manual

About this manual

This document provides hardware information for the Varian (now Agilent) 210-MS, 220-MS, and 225-MS Ion Trap Mass Spectrometers. It details the functional description of instrument subsystems including the gas chromatograph, mass spectrometer components, vacuum system, and electronic assemblies.

What's inside

• Functional Description
• Chemical Ionization
• MS Maintenance
• Troubleshooting
• Documents, Parts, and Supplies

Frequently asked questions

What information must be provided when calling Varian Customer Support for MS problems?

You must provide the MS serial number, installed options, and diagnostics test results.

What specific details about a GC column are required when contacting support for gas chromatograph problems?

You must provide the manufacturer, bonded phase, film thickness, and ID and length.

What computer-related information is needed to describe software problems to a service representative?

You must provide the computer manufacturer and model, Windows version, mouse driver version, printer details, network configuration, autoexec.bat and config.sys files, and MS Workstation software version.
