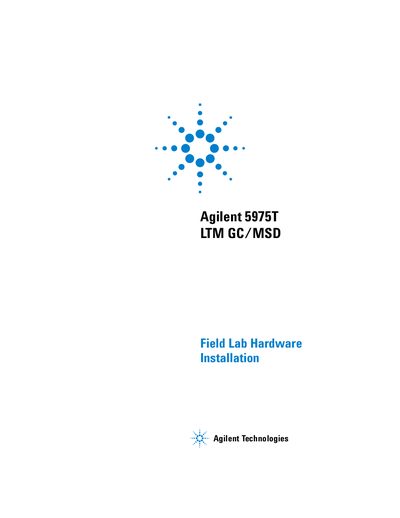

Agilent 5975T LTM GC/MSD Field Lab Hardware Installation Guide

About this manual

This document serves as an installation manual for the Agilent Technologies 5975T LTM GC/MSD system. It details procedures for unpacking, attaching the instrument to shipping containers, connecting helium lines, and preparing the vacuum system and column.

The guide covers specific requirements for field laboratory setups, including electrical configurations, environmental conditions like temperature and humidity, and air conditioning needs. It also includes instructions for installing the ChemStation PC software, starting the instrument, and performing initial performance verifications such as chromatographic checkout and sensitivity checks.

What's inside

• Introduction
• Important Safety Warnings
• Electrical Requirements
• Air Conditioning and Environmental Requirements
• Unpacking and Inspecting Materials
• Connecting the Helium Lines to the GC
• Installing the ChemStation PC
• Conditioning the LTM Column Module
• Verifying El System Performance
• Packing the Instrument for Transport

Specifications

Frequently asked questions

What components make up the 5975T LTM GC/MSD system?

The system consists of the basic mainframe, an optional ion gauge and controller, an optional 7693 Series Automatic Liquid Sampler, and an optional standard laptop PC MSD ChemStation bundle.

Which vacuum pumps are recommended for the system?

The available and recommended foreline vacuum pumps are the IDP3 dry pump and the MVP-055-3 dry pump.
