This document is a pre-installation site preparation checklist for Varian 385-LC, outlining the electrical service, exhaust fume ventilation, and bench space requirements of the instrument.

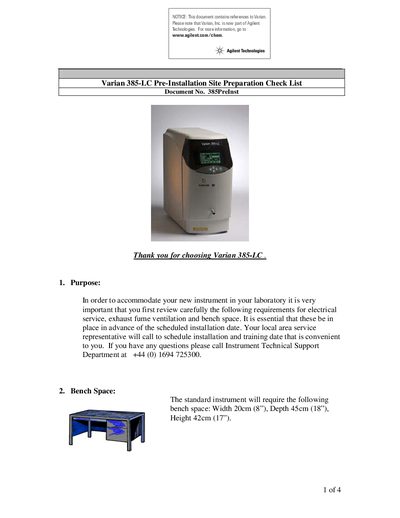

This document serves as a pre-installation site preparation checklist for the Varian (now Agilent) 385-LC instrument. It outlines critical requirements that must be in place before installation, including specific dimensions for bench space, electrical power specifications for different regions, and environmental conditions such as temperature and humidity.
| Bench Space Width | 20cm (8") |
|---|---|
| Bench Space Depth | 45cm (18") |
| Bench Space Height | 42cm (17") |
| USA/Japan Power Voltage | 115V (AC) +10% |
| Europe Power Voltage | 230V (AC) +10% |
| Operating Temperature Range | 15 to 35°C (59 to 86°F) |
| Relative Humidity Range | 10-80% |
| Gas Purity Requirement | Nitrogen (98% purity or better) |
| Maximum Gas Pressure | 100 psi (6.7 bar) |
| Minimum Processor Speed | 2GHz or greater |
The instrument requires a width of 20cm (8"), a depth of 45cm (18"), and a height of 42cm (17").
The instrument requires Nitrogen with a purity of 98% or better, filtered to 0.2um.
Yes, but only if non-flammable solvents are being used.
