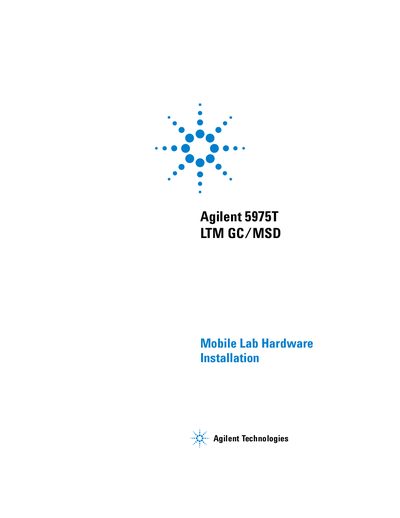

Agilent 5975T LTM GC/MSD Mobile Lab Hardware Installation Guide

About this manual

This document serves as a comprehensive field installation manual for the Agilent Technologies 5975T LTM GC/MSD system. It details the necessary steps to prepare the site, unpack factory-shipped materials, and physically install the instrument on a laboratory bench.

The guide covers critical pre-installation requirements, including important safety warnings regarding high voltages and hydrogen usage, as well as specific electrical and environmental specifications such as voltage ranges, temperature limits, and humidity levels. It also provides instructions for connecting helium lines, preparing the vacuum system, installing the ChemStation PC software, and performing initial performance verification checks.

What's inside

• Introduction
• Important Safety Warnings
• Hydrogen Safety
• Electrical Requirements
• Air Conditioning and Environmental Requirements
• Unpacking and Inspecting Materials
• Attaching the Instrument to the Laboratory Bench
• Connecting the Helium Lines
• Installing the ChemStation PC
• Starting the Instrument

Specifications

Frequently asked questions

What components make up the 5975T LTM GC/MSD system?

The system consists of the basic mainframe, an optional ion gauge and controller, an optional 7693 Series Automatic Liquid Sampler, and an optional standard laptop PC MSD ChemStation bundle.

What are the available foreline vacuum pumps?

The available options include the IDP3 dry pump, MVP-055-3 dry pump, and a wet rotary vane vacuum pump.
