This document describes the absolute maximum ratings and electrical characteristics of the NPN SILICON PLANAR TRANSISTOR CD9014. CD9014 is a silicon planar transistor packaged in TO-92, with a collector-emitter voltage of 50V, a collector-base voltage of 50V, and an emitter-base voltage of 5.0V. Its maximum collector current is 100mA and maximum collector power dissipation is 625mW. The transistor has different current gain classifications, and its dynamic characteristics include output capacitance, transition frequency, and noise figure.

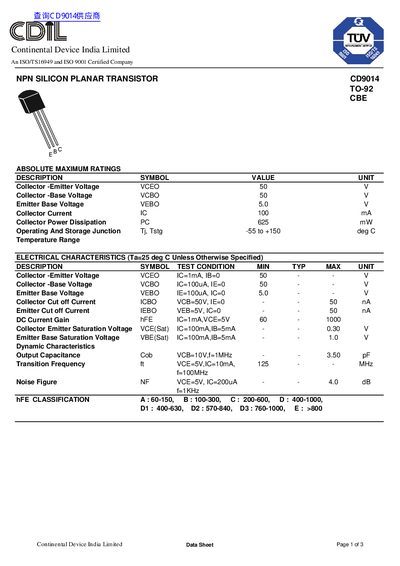

This document is a technical datasheet for the CDIL CD9014, an NPN silicon planar transistor packaged in TO-92. It provides comprehensive specifications including absolute maximum ratings such as collector-emitter voltage (50 V) and power dissipation (625 mW). The operating temperature range spans from -55 to +150 degrees Celsius.
| Collector-Emitter Voltage (VCEO) | 50 V |
|---|---|
| Collector Power Dissipation (PC) | 625 mW |
| Operating and Storage Junction Temperature Range | -55 to +150 deg C |
| DC Current Gain (hFE) Class A | 60-150 |
| Package Type | TO-92 Plastic Package |
The maximum collector current (IC) is 100 mA.
There are 2000 pieces per ammo pack.
The transition frequency is 125 MHz.
