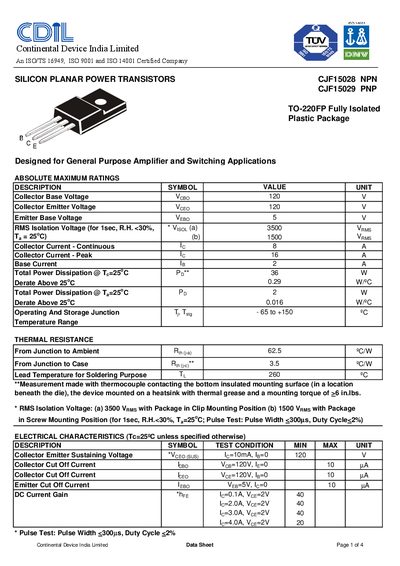

CJF15028/CJF15029 are Silicon planar power transistors, NPN/PNP type, TO-220FP fully isolated plastic package, designed for general purpose amplifier and switching applications.
The document provides technical data for the CJF15028 (NPN) and CJF15029 (PNP) silicon planar power transistors. These devices are housed in a TO-220FP fully isolated plastic package and are designed for general-purpose amplifier and switching applications.
| Collector Base Voltage (Vcbo) | 120 V |
|---|---|
| Collector Emitter Voltage (Vceo) | 120 V |
| Continuous Collector Current (Ic) | 8 A |
| Peak Collector Current (Icm) | 16 A |
| Total Power Dissipation @ Tj=25°C | 36 W |
| Operating Junction Temperature Range | -65 to +150 °C |
