CJF100 CJF105 CJF101 CJF106 CJF102 CJF107 are fully isolated plastic package power darlingtons for linear and switching applications.
The CDIL CJF series (CJF100, CJF105, CJF101, CJF106, CJF102, CJF107) are silicon planar power Darlington transistors offered in a fully isolated TO‑220FP plastic package. They are intended for linear and switching applications and provide high voltage and current capabilities.

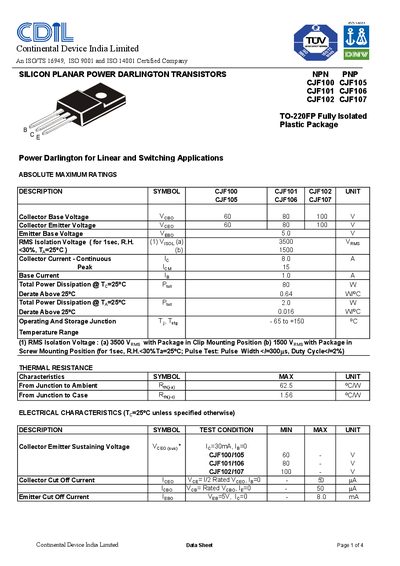

The document lists absolute maximum ratings, thermal resistance, detailed electrical specifications, dynamic parameters, and packaging information, along with a disclaimer and contact details for CDIL.
| Collector‑Base Voltage (Vso) | 60‑100 V |
|---|---|
| Collector‑Emitter Voltage (Vceo) | 60‑100 V |
| Emitter‑Base Voltage (Vebo) | 5.0 V |
| RMS Isolation Voltage (clip mounting) | 3500 V |
| Continuous Collector Current | 8.0 A |
| Peak Collector Current | 15 A |
| Base Current | 1.0 A |
| Total Power Dissipation @ 25°C | 80 W |
| Operating Junction Temperature Range | -65 to +150 °C |
| Thermal Resistance Junction‑to‑Ambient | 62.5 °C/W |
| Thermal Resistance Junction‑to‑Case | 1.56 °C/W |
| Base‑Emitter On Voltage | 2.8 V |
| DC Current Gain (hFE) | 1 000‑20 000 |
| Small‑Signal Current Gain | 40 |
| Forward Voltage of Commutation Diode | 6.0 V |
The continuous collector current rating is 8.0 A.
The RMS isolation voltage is 3500 V when the package is in the clip‑mounting position.
They are supplied in a fully isolated TO‑220FP plastic package.
The device can operate from –65 °C to +150 °C.
