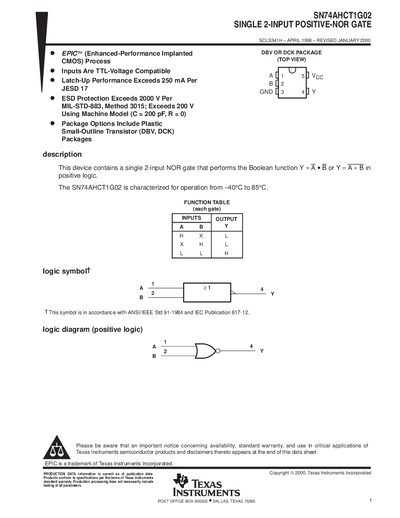

SN74AHCT1G02 is a single 2-input positive-NOR gate from Texas Instruments. This device performs the Boolean function Y = A • B or Y = A + B in positive logic. The SN74AHCT1G02 is characterized for operation from –40°C to 85°C.
The document describes the SN74AHCT1G02, a single 2-input NOR gate designed with EPIC™ (Enhanced-Performance Implanted CMOS) process technology. It features TTL-voltage compatible inputs and is characterized for operation over an industrial temperature range of -40°C to +85°C.
| High-Level Input Voltage (VIH) | 2 V minimum |
|---|---|
| High-Level Output Current (IOH) | -8 mA minimum |
The device performs the Boolean function Y = A + B (or Y = A eB) in positive logic.
Yes, the inputs are designed to be TTL-voltage compatible.
