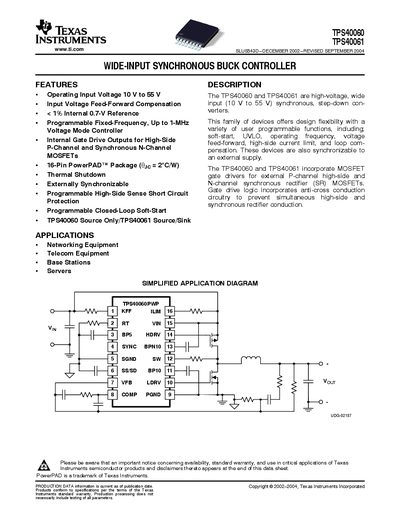

The TPS40060 and TPS40061 are high-voltage, wide input (10 V to 55 V) synchronous, step-down converters. This family of devices offers design flexibility with a variety of user programmable functions, including soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit, and loop compensation. These devices are also synchronizable to an external supply.
The TPS40060 and TPS40061 are high-voltage, wide input (10 V to 55 V) synchronous step-down converters designed for networking equipment, telecom equipment, base stations, and servers. These devices offer design flexibility with user programmable functions including soft-start, UVLO, operating frequency, voltage feed-forward, high-side current limit, and loop compensation.
The controllers incorporate MOSFET gate drivers for external P-channel high-side and N-channel synchronous rectifier (SR) MOSFETs. Gate drive logic includes anti-cross conduction circuitry to prevent simultaneous high-side and synchronous rectifier conduction. The TPS40060 is source-only, while the TPS40061 supports both source and sink.
| Operating Input Voltage Range | 10 V to 55 V |
|---|---|
| Maximum Switching Frequency | Up to 1 MHz |
| Package Type | 16-Pin PowerPAD Package |
| Operating Junction Temperature Range | -40°C to 125°C |
| Quiescent Current (Typical) | 25 mA |
The devices operate with an input voltage range of 10 V to 55 V.
The TPS40060 is source-only, while the TPS40061 supports both source and sink.
They are available in a 16-Pin PowerPAD™ Package.
