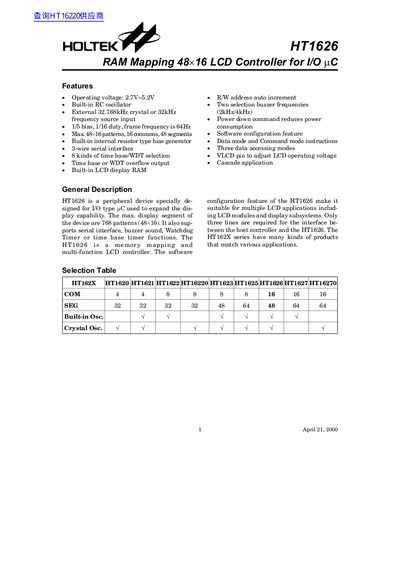

HT1626 is a peripheral device specially designed for I/O type MCUs to expand the display capability. The device has a maximum display segment of 768 patterns (48 * 16). It also supports serial interface, buzzer sound, Watchdog Timer or time base timer functions. The HT1626 is a memory mapping and multi-function LCD controller. The software configuration feature of the HT1626 makes it suitable for multiple LCD applications including LCD modules and display subsystems. Only three lines are required for the interface between the MCU and the LCD controller.
The HT1626 is a peripheral device designed for I/O type microcontrollers to expand display capabilities. It supports up to 48x16 patterns with 16 commons and 48 segments, utilizing a memory mapping structure directly linked to the LCD driver.
Key features include an internal resistor-type bias generator, a built-in RC oscillator or external crystal support, and a three-wire serial interface for communication. The device also incorporates functions such as buzzer sound generation, watchdog timer (WDT), and time base selection.
| Operating Voltage | 2.7V to 5.2V |
|---|---|
| Max Display Size | 48x16 patterns |
| Interface Type | 3-wire serial interface |
| Clock Source Options | Built-in RC oscillator or External 32.768kHz crystal |
| Package Type | 100 QFP |
The device supports a maximum of 48x16 patterns.
Yes, it accepts an external 32kHz frequency source input or a 32.768kHz crystal.
The device operates within a voltage range of 2.7V to 5.2V.
