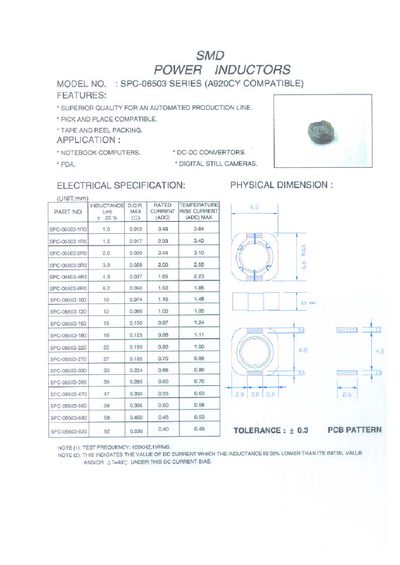

This document provides technical data for the SPC-06503 series of SMD power inductors. The components are designed for superior quality on automated production lines and feature pick-and-place compatibility with tape and reel packing.
The datasheet lists specific part numbers, such as SPC-06503-1R0 through SPC-06503-820, along with their inductance values, DC resistance (D.C.R.), rated current, and rise current. It specifies that these components are compatible with A920CY and are suitable for use in notebook computers, PDAs, and DC-DC converters.
The test frequency used for the specifications is 100kHz.
The current ratings apply when the ambient temperature is 40°C.
