This document describes the specifications and characteristics of chip capacitors produced by Siemens Matsushita Components. These capacitors use X7R ceramic material and have a rated voltage of 25Vdc and 50Vdc. The product sizes range from 0603 to 1210 and have different packaging options. The capacitors have high insulation resistance and low dissipation factor, making them suitable for various applications.

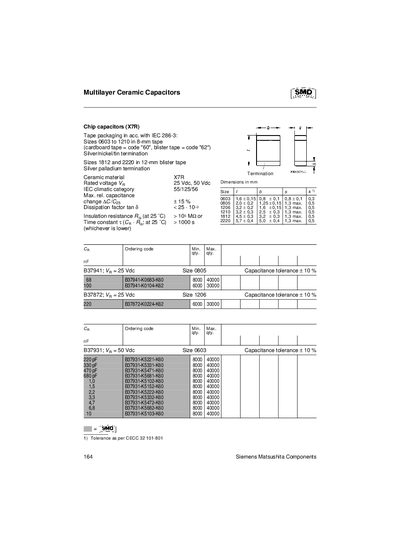

This datasheet provides specifications for Siemens multilayer ceramic capacitors (MLCC) in surface‑mount (SMD) format. It lists available package sizes, tape packaging options, termination types, dielectric material, and electrical characteristics.
Key information includes rated voltage options (25 VDC or 50 VDC), insulation resistance, dissipation factor, and time constant values, as well as ordering codes for each capacitance value and size.
| Dielectric Material | X7R |
|---|---|
| Rated Voltage | 25 VDC, 50 VDC |
| Tape Packaging | 8‑mm tape (sizes 0603‑1210), 12‑mm blister tape (sizes 1812, 2220) |
| Capacitance Tolerance | ±10 % |
The capacitors are rated for either 25 VDC or 50 VDC depending on the part.
