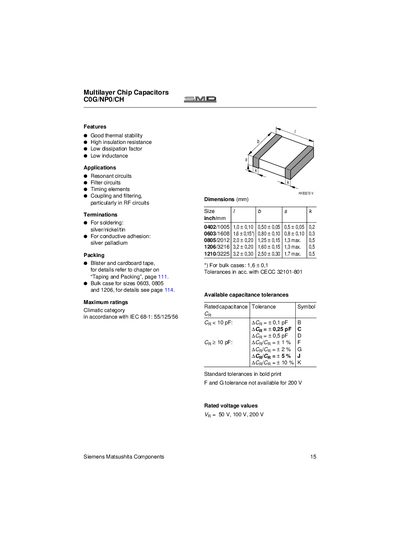

The C0G/NP0/CH multilayer chip capacitors offer good thermal stability, high insulation resistance, low dissipation factor and low inductance. They are suited for resonant, filter and timing circuits, as well as coupling and filtering in RF applications.
The document lists detailed dimensions, voltage ratings, capacitance tolerances, termination options (silver/nickel/tin for soldering, silver palladium for conductive adhesion) and packaging methods. Ordering codes for 50 V, 100 V and 200 V parts with AgNiSn terminations are provided, along with characteristic curves for impedance, dissipation factor and insulation resistance.
| Rated voltage | 50 V, 100 V, 200 V |
|---|---|
| Climatic category | IEC 68‑1: 55/125/56 |
| Soldering termination | silver/nickel/tin |
| Conductive adhesion termination | silver palladium |
| Size 0402 dimensions | 1.04 mm × 0.10 mm |
The capacitors are offered with rated voltages of 50 V, 100 V and 200 V.
Soldering terminations use a silver/nickel/tin alloy.
