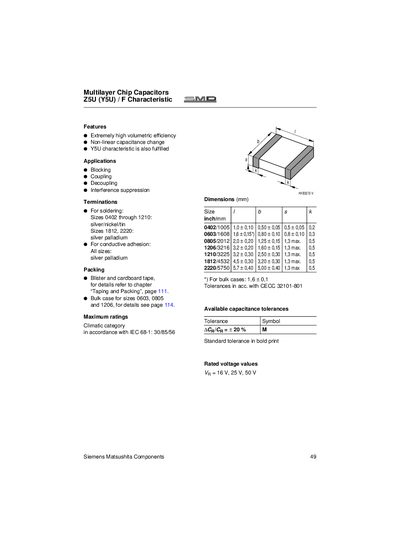

The Z5U (Y5U) / F series are multilayer chip capacitors offering extremely high volumetric efficiency and a non‑linear capacitance change. They are suited for blocking, coupling, decoupling, and interference‑suppression applications.
The manual lists termination options (AgNiSn or AgPd), maximum ratings, climatic category, dimensions, ordering codes for various voltage ratings, and characteristic curves such as capacitance change versus temperature, impedance versus frequency, and dissipation factor versus temperature. Packaging options include blister and cardboard tape or bulk cases for selected sizes.
| Rated voltage | 16 V, 25 V, 50 V |
|---|---|
| Climatic category | IEC 68‑1: 30/85/56 |
| Termination type (soldering) | silver/nickel/tin |
| Packing | Blister and cardboard tape; bulk case for 0603, 0805, 1206 |
They are used for blocking, coupling, decoupling, and interference suppression.
Soldering terminations use silver/nickel/tin, and conductive‑adhesion terminations use silver palladium.
The capacitors are available with rated voltages of 16 V, 25 V, and 50 V.
They meet IEC 68‑1 climatic category 30/85/56.
