The SPC-06503 series from SMD provides high‑quality inductors designed for automated production lines. They are compatible with pick‑and‑place equipment and are supplied in tape‑and‑reel packaging. Typical applications include notebook computers, PDAs, DC‑DC converters and digital still cameras.

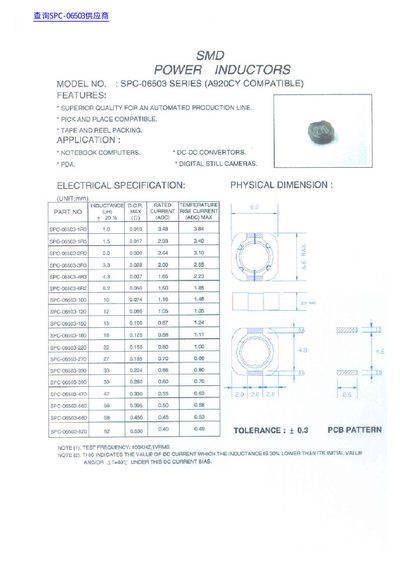

The datasheet lists the electrical specifications for each part number, including inductance values from 1 µH to 68 µH, rated currents, and tolerance of +0.3. Test conditions are specified at 100 kHz and 1 V rms. Physical dimensions are given in millimetres.
| Inductance (SPC-06503-1R0) | 1.0 µH |
|---|---|
| Inductance (SPC-06503-2R0) | 2.0 µH |
| Inductance (SPC-06503-4F3) | 4.0 µH |
| Tolerance | +0.3 |
| Test Frequency | 100 kHz, 1 V rms |
They are suitable for notebook computers, PDAs, DC‑DC converters and digital still cameras.
The tolerance is +0.3.
The specifications are measured at a test frequency of 100 kHz with a 1 V rms signal.
