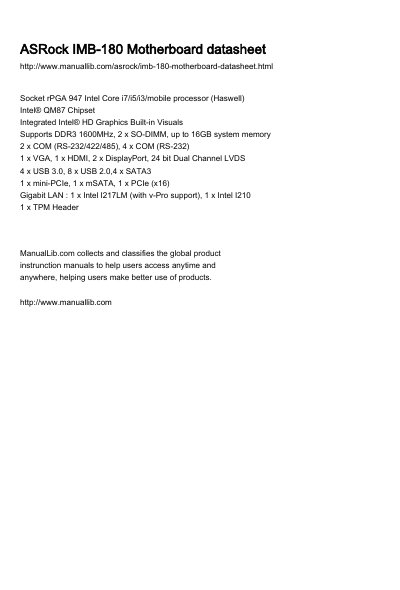

ASRock IMB-180 Industrial Motherboard Datasheet

Socket rPGA 947 Intel Core i7/i5/i3/mobile processor (Haswell) Intel

Brand: ASRock
Category: Motherboard
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 942 KB
Published: 06 May, 2014
Updated: 25 September, 2023
MD5 checksum: 7CFCD4C69055E639BEAAD7967CF6321B
PDF: ASRock IMB-180 Industrial Motherboard Datasheet PDF

About this manual

The ASRock IMB-180 is a Mini-ITX form factor industrial motherboard designed for use with Intel Core i7, i5, or i3 mobile processors (Haswell) on the rPGA947 socket. It utilizes the Intel QM87 chipset and includes integrated Intel HD Graphics.

The board supports up to 16GB of DDR3 system memory via two SO-DIMM slots and offers extensive connectivity options including multiple COM ports, USB 3.0/2.0 interfaces, SATA3 storage, and Gigabit LAN capabilities.

What's inside

Specifications
Processor System
Chipset
Memory Technology
Expansion Slots
Rear I/O
Internal Connector
Graphics Controller
Environment

Specifications

Form Factor	Mini-ITX (6.7-in x 6.7-in)
CPU Socket	rPGA947 for Intel Core i7/i5/i3/mobile processor (Haswell)
Chipset	Intel QM87
Memory Support	2 x SO-DIMM, up to 16GB system memory
LAN Controller	Intel 1217LM (with v-Pro support), Intel 1210
Operating Temperature	0°C-60°C

Frequently asked questions

What is the maximum system memory supported by this motherboard?

The ASRock IMB-180 supports up to 16GB of system memory.

What is the operating temperature range for this industrial motherboard?

The ASRock IMB-180 operates within a temperature range of 0°C to 60°C.

What power input voltage is required for this motherboard?

The ASRock IMB-180 requires a DC input power of 12V to 19V.
