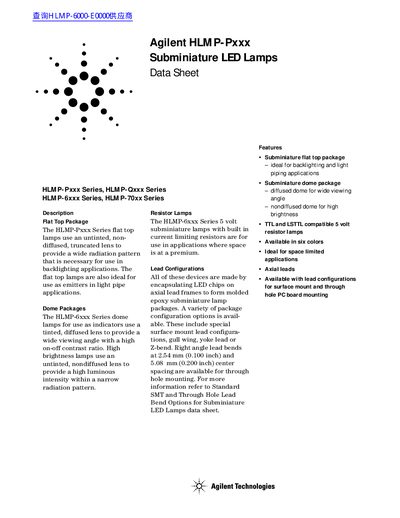

The data sheet introduces the features and characteristics of the Agilent HLMP-Pxxx series, HLMP-Qxxx series, HLMP-6xxx series, HLMP-70xx series, including subminiature flat top package, subminiature dome package, TTL and LSTTL compatible 5 volt resistor lamps, six colors, ideal for space limited applications, axial leads, with lead configurations for surface mounting and through hole PC board mounting
This document provides technical specifications for the Agilent HLMP-Pxxx Series of subminiature LED lamps. The series includes Flat Top packages designed for backlighting and light piping applications using untinted lenses, as well as Dome packages available in tinted diffused or nondiffused high-brightness variants.
The datasheet details electrical and optical characteristics across multiple color options including red, orange, yellow, green, and emerald. It covers absolute maximum ratings, operating temperature ranges, package dimensions for axial leads (straight, right angle, gull wing, yoke, Z-bend), and ordering information with intensity binning.
| Storage Temperature Range | -55 to +100 °C |
|---|---|
| Package Type Options | Flat Top, Dome |
Available configurations include axial leads, surface mount gull wing, yoke lead, and Z-bend.
The peak wavelength is 655 nm.
