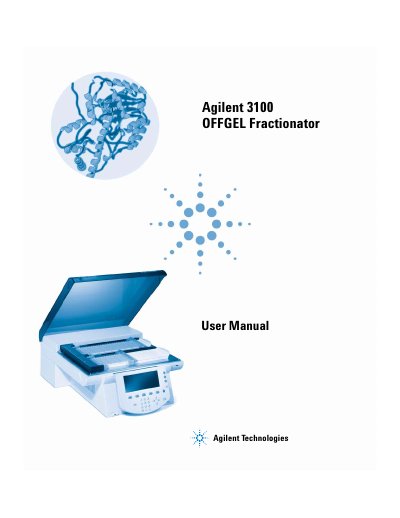

This is the user manual of Agilent 3100 OFFGEL Fractionator
The Agilent 3100 OFFGEL Fractionator is an instrument designed to perform fractionation of proteins based on their isoelectric point. The device includes a control module that manages various functions such as tray preparation, run execution, and data analysis. It supports both OFFGEL mode for standard IPG IEF applications and specific configurations for different consumable kits.
This user manual covers the entire lifecycle of the instrument, from site requirements and physical installation to daily operation and maintenance. Key topics include setting up the cooling platform temperature, programming timetables, performing fractionations, cleaning electrodes and trays, updating firmware, and resolving common errors through a dedicated troubleshooting section.
| Input Voltage Range | 100–240 V |
|---|---|
| Line Frequency | 50–60 Hz |
No, there is no voltage selector in the rear of the instrument because it accepts any line voltage from 100–240 V.
Approximately 15 cm (6 inches) of clear space at the rear is needed for electric connections.
