The X5083 is a device that integrates four popular functions, including power-on reset control, watchdog timer, supply voltage supervision, and block lock serial EEPROM memory. This combination lowers system cost, reduces board space requirements, and increases reliability.

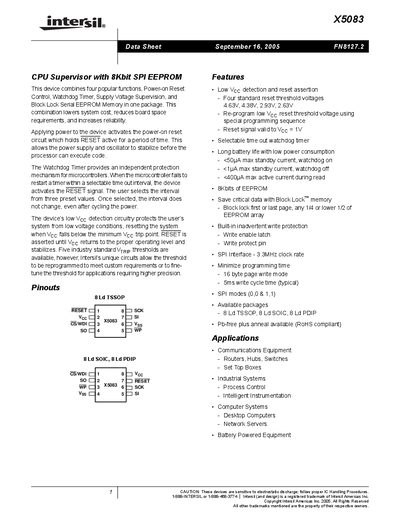

The Intersil X5083 is an integrated circuit that combines four popular functions into one package: Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Serial EEPROM Memory. This combination lowers system cost, reduces board space requirements, and increases reliability for various applications including communications equipment and industrial systems.
The device features a low Vcc detection circuitry that protects the user's system from low voltage conditions by resetting the system when Vcc falls below the minimum trip point. It also includes a selectable time-out watchdog timer to provide an independent protection mechanism for microcontrollers, ensuring they restart if they fail to reset the timer within a selected interval.
| EEPROM Capacity | 8Kbits |
|---|---|
| Max Standby Current (Watchdog On) | <50µA |
| Max Active Current during Read | <400µA |
| SPI Clock Rate | 3.3MHz |
| Write Cycle Time (Typical) | 5ms |
The device offers four standard reset threshold voltages: 4.63V, 4.38V, 2.93V, and 2.63V.
Yes, the threshold can be reprogrammed using a special programming sequence to meet custom requirements or fine-tune precision.
The device is available in 8 Lead TSSOP, 8 Lead SOIC, and 8 Lead PDIP packages.
