This product is a 3-input AND gate with single event latch-up function, which can operate reliably in any radiation environment.

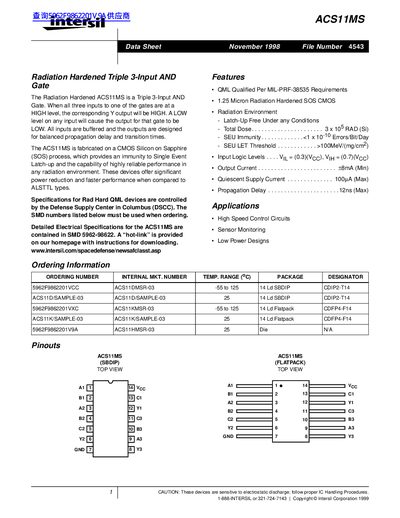

The Intersil ACS11MS is a Triple 3-Input AND Gate fabricated on a CMOS Silicon on Sapphire (SOS) process. This design provides immunity to Single Event Latch-up and ensures highly reliable performance in any radiation environment, offering significant power reduction compared to ALSTTL types.
| Process Technology | 1.25 Micron Radiation Hardened SOS CMOS |
|---|---|
| Latch-Up Immunity | Free Under any Conditions |
| Total Dose Rating | 3 x 10^5 RAD (Si) |
| SEU Immunity | <1x 10^-9 Errors/Bit/Day |
| SEU LET Threshold | >100MeV/(mg/cm^2) |
| Input Logic Levels (VIH) | (0.7)(Vcc) |
| Output Current | +8mA (Min) |
| Quiescent Supply Current | -100A (Max) |
| Propagation Delay | 12ns (Max) |
Yes, it is QML Qualified Per MIL-PRF-38535 Requirements.
The device remains latch-up free under a total dose of up to 3 x 10^5 RAD (Si).
The maximum propagation delay is rated at 12ns.
