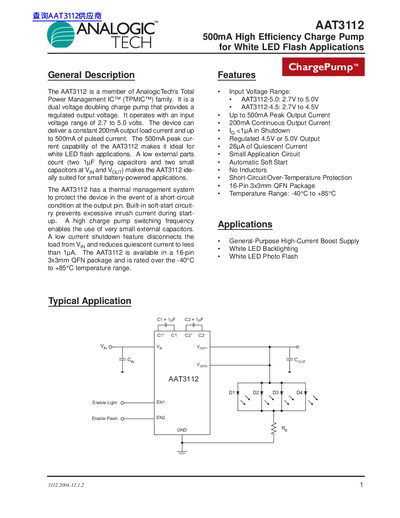

The AAT3112 is a high efficiency 500mA charge pump that is ideal for white LED flash applications. It operates with an input voltage range of 2.7 to 5.0 volts and can provide a constant 200mA output load current and up to 500mA of pulsed current.
The AAT3112 is a member of the Total Power Management IC family that provides a regulated output voltage. It operates with an input voltage range of 2.7V to 5.0V and can deliver a constant 200mA output load current, with up to 500mA of pulsed current capability.
The device features a low external parts count requiring only two flying capacitors and small bypass capacitors, making it suitable for small battery-powered applications. It includes thermal management protection, built-in soft-start circuitry, and a high charge pump switching frequency that enables the use of very small external capacitors.
| Peak Output Current | 500mA |
|---|---|
| Continuous Output Current | 200mA |
| Input Voltage Range (AAT3112-5.0) | 2.7V to 5.0V |
| Input Voltage Range (AAT3112-4.5) | 2.7V to 4.5V |
| Quiescent Current | < 1µA in Shutdown |
| Package Type | 16-pin 3x3mm QFN |
| Operating Temperature Range | -40°C to +85°C |
The device can deliver up to 500mA of pulsed current.
No, it is a charge pump design that operates without inductors.
