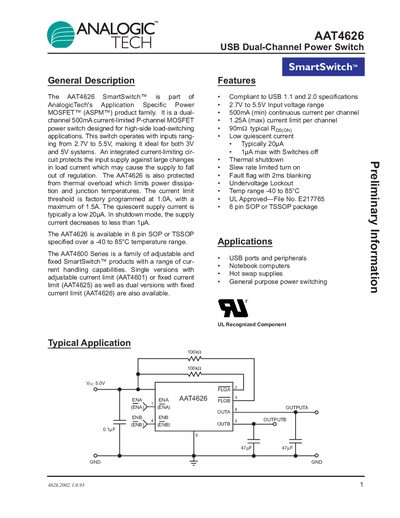

The AAT4626 SmartSwitch™ is a dual-channel 500mA current-limited P-channel MOSFET power switch designed for high-side load-switching applications. It operates with inputs ranging from 2.7V to 5.5V, making it suitable for both 3V and 5V systems. The integrated current-limiting circuit protects the input supply from large changes in load current that may cause the supply to fall out of regulation. The AAT4626 is also protected from thermal overload, limiting power dissipation and junction temperatures. The current limit threshold is factory programmed at 1.0A, with a maximum of 1.5A. The quiescent supply current is typically a low 20µA. In shutdown mode, the supply current decreases to less than 1µA. The AAT4626 is available in 8 pin SOP or TSSOP specified over a -40 to 85°C temperature range. The AAT4600 Series is a family of adjustable and fixed SmartSwitch™ products with a range of current handling capabilities. Single versions with adjustable current limit (AAT4601) or fixed current limit (AAT4625), as well as dual versions with fixed current limit (AAT4626), are also available.
The AAT4626 SmartSwitch™ is a dual‑channel 500 mA current‑limited P‑channel MOSFET power switch designed for high‑side load‑switching applications. It operates from 2.7 V to 5.5 V input, includes an integrated current‑limiting circuit, thermal‑overload protection, under‑voltage lockout and fault‑flag outputs, making it suitable for USB ports, hot‑swap supplies and general‑purpose power switching.
The device is supplied in 8‑pin SOP or TSSOP packages and is rated for –40 °C to 85 °C operation. Typical quiescent current is only 20 µA, and the maximum power dissipation is 1.25 W (SOP‑8). Detailed pin descriptions, absolute maximum ratings, electrical characteristics and application notes are provided in the datasheet.
| Input voltage range | 2.7 V to 5.5 V |
|---|---|
| Continuous current per channel (min) | 500 mA |
| Maximum current limit per channel | 1.25 A |
| Typical quiescent current | 20 µA |
| Package options | 8‑pin SOP or TSSOP |
| Operating temperature range | -40 °C to 85 °C |
| Maximum power dissipation (SOP‑8) | 1.25 W |
The device typically draws about 20 µA of quiescent current when operating.
The AAT4626 is a dual‑channel power switch, offering two independent output channels.
