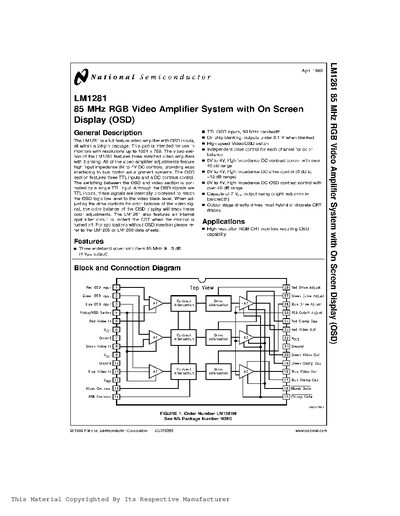

The LM1281 is a full feature video amplifier designed for use in monitors with resolutions up to 1024 x 768. It features three matched wideband video amplifiers with blanking, high input impedance, and independent drive control for each channel to facilitate color balance adjustments.
| Bandwidth | 85 MHz @ -3 dB |
|---|---|
| Output Swing | 4 Vpp |
| Supply Voltage | 11.4V to 12.6V |
| Operating Temperature Range | -20°C to +70°C |
| Video Input Resistance | 100 kΩ |
The device is intended for use in monitors with resolutions up to 1024 x 768.
The system features three wideband video amplifiers with an 85 MHz bandwidth.
The absolute maximum rating for the supply voltage on pins 6, 9, and 22 is 15V.
