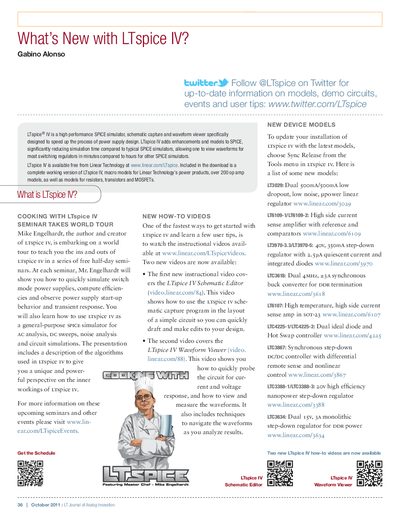

This document introduces the latest features of LTspice IV, including quick simulation of switch-mode power supplies, calculation of efficiency, observation of power supply startup behavior and transient response.
This document introduces the latest updates to LTspice IV, a high-performance SPICE simulator designed specifically to speed up power supply design. It highlights enhancements that significantly reduce simulation time compared to typical SPICE simulators, allowing users to view waveforms for switching regulators in minutes rather than hours.
The guide details new device models included in the software, such as various linear regulators and step-down converters. Additionally, it provides information on upcoming seminars led by creator Mike Engelhardt and points to available instructional videos covering the Schematic Editor and Waveform Viewer functionalities.
| Product Type | SPICE simulator, schematic capture and waveform viewer |
|---|---|
| Included Models | over 200 op amp models, resistors, transistors and MOSFETs |
You can visit www.linear.com/LTspiceEvents to get the schedule for upcoming seminars.
Choose Sync Release from the Tools menu in Ltspice Iv.
