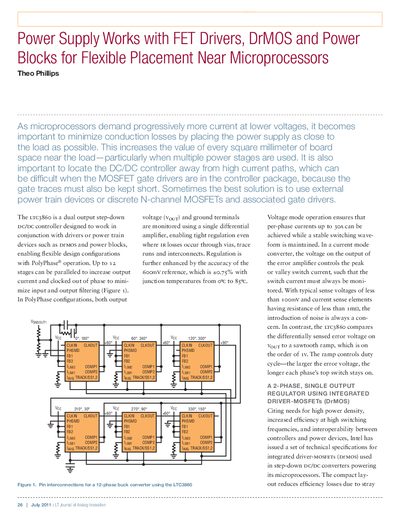

The LTC3860 is a dual output step-down DC/DC controller designed to work in conjunction with drivers or power train devices such as DrMOS and power blocks, enabling flexible design configurations with PolyPhase® operation.
The LTC3860 is a dual output step-down controller designed to work with external driver devices such as FETs, DrMOS, and Power Blocks. It enables PolyPhase operation where up to 12 stages can be paralleled to increase output current. The device features voltage mode operation that ensures stable switching waveforms even at high per-phase currents of up to 30A.
Voltage mode operation allows per-phase currents up to 30A while maintaining a stable switching waveform.
The inductors used have a DC resistance tolerance of +10% at 20°.
