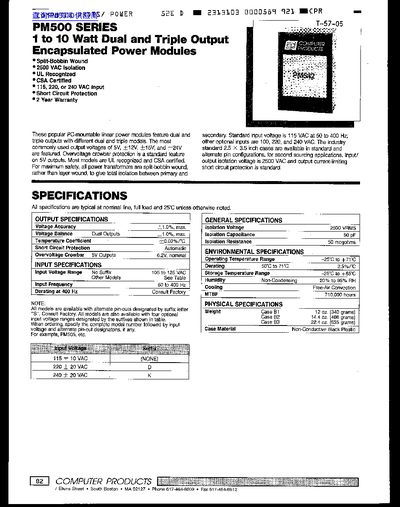

This document is a technical datasheet for the Computer Products PM500 Series, which includes 1 to 10 Watt Dual and Triple Output Encapsulated Power Modules. The series features split-bobbin wound transformers providing 2500 VAC isolation and includes standard short circuit protection and overvoltage crowbar protection on 5V outputs.
| Power Rating | 1 to 10 Watt |
|---|---|
| Isolation Voltage | 2500 VAC |
| Winding Type | Split-Bobbin Wound |
| Operating Temperature Range | -25°C to +71°C |
| Input Voltage (Standard) | 115 VAC |
| Case Size | 2.5 X 3.5 inch |
The standard input frequency range is 50 to 400 Hz.
Yes, output current limiting short circuit protection is a standard feature.
