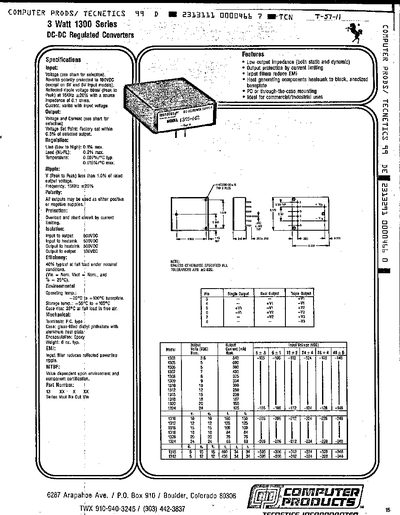

The 1300 Series DC‑DC converters from Computer Products provide 3 W output power with a fixed switching frequency of 15 kHz (20% duty). They feature low output impedance, current‑limit protection, and input filtering to reduce EMI. All units can be configured for either positive or negative polarity and are suitable for commercial and industrial applications.
Key electrical characteristics include line regulation of 0.1 % max, load regulation of 0.2 % max, and typical efficiency of 40 % at full load. The converters operate from –20 °C to +100 °C, can be stored from –55 °C to +105 °C, and offer up to 500 VDC isolation between input and output.
| Output Power | 3 W |
|---|---|
| Switching Frequency | 15 kHz (20% duty) |
| Line Regulation | 0.1 % max |
| Load Regulation | 0.2 % max |
| Storage Temperature Range | -55 °C to +105 °C |
