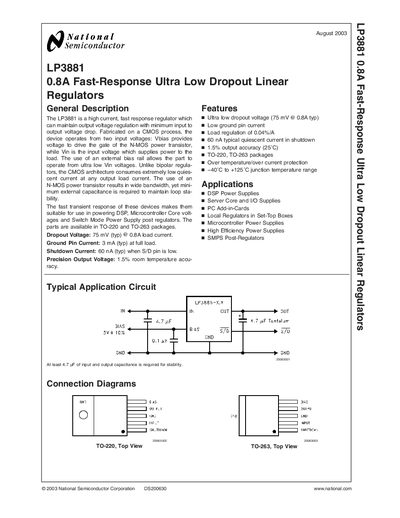

LP3881 0.8A Fast-Response Ultra Low Dropout Linear Regulators
The LP3881 is a high-current, fast-response linear regulator fabricated on a CMOS process to maintain output voltage regulation with minimum input-to-output voltage drop. It operates from two independent input voltages: Vbias for the gate drive and Vin for the load power, allowing operation from ultra-low input voltages.
| Load Current | 0.8A |
|---|---|
| Dropout Voltage (Typ) | 75 mV @ 0.8A |
| Quiescent Current (Shutdown) | 60 nA |
| Output Voltage Accuracy | 1.5% |
| Operating Temperature Range | -40°C to +125°C |
The device is available in TO-220 and TO-263 packages.
At least 4.7 uF of input and output capacitance is required to maintain loop stability.
