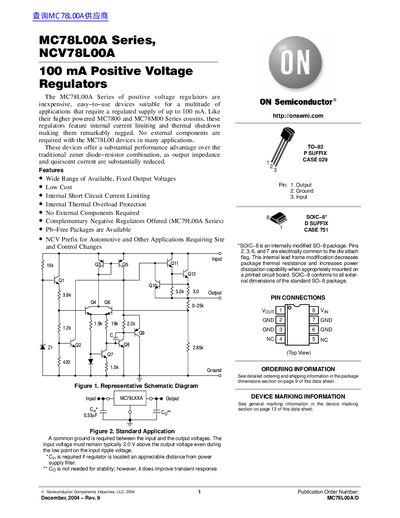

The MC78L00A Series are low-cost, easy-to-use, 100mA positive voltage regulators with internal short circuit current limiting and thermal shutdown features.
The MC78L00A Series of positive voltage regulators are inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. Like their higher powered MC7800 and MC78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged.
| Output Current | 100 mA |
|---|---|
| Operating Junction Temperature Range (MC78LXXAC) | 0°C to +125°C |
| Storage Temperature Range | -65°C to +150°C |
| Dropout Voltage (Typical) | 1.7 Vdc |
No external components are required with the MC78L00 devices in many applications.
The MC78L00A Series of positive voltage regulators are suitable for applications that require a regulated supply of up to 100 mA.
No external components are required with the MC78L00 devices in many applications.
The maximum operating junction temperature range is 0 to +150 °C.
