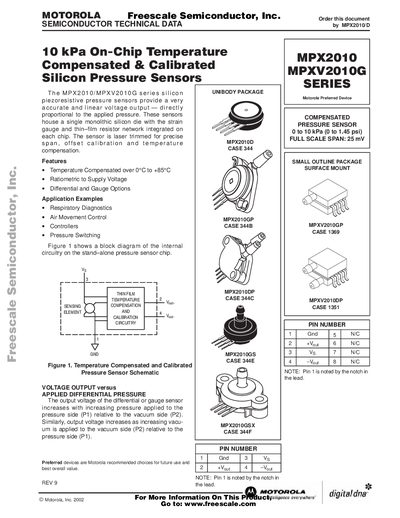

This document introduces the MPX2010/MPXV2010G series silicon piezoresistive pressure sensors, which provide a very accurate and linear voltage output that is directly proportional to the applied pressure. These sensors house a single monolithic silicon die with the strain gauge and thin-film resistor network integrated on each chip. The sensor is laser trimmed for precise span, offset calibration and temperature compensation.
The document provides technical specifications for the MPX2010/MPXV2010G series of silicon piezoresistive pressure sensors manufactured by Freescale Semiconductor. These devices offer a very accurate and linear voltage output directly proportional to applied pressure, with integrated strain gauges and thin-film resistor networks.
| Temperature Range (Compensated) | 0°C to +85°C |
|---|---|
| Maximum Pressure | 75 kPa |
| Operating Temperature Range | -40 to +125 °C |
| Pressure Range | 0 to 10 kPa |
| Supply Voltage | 10 Vdc (Min) |
| Full Scale Span | 25 mv |
| Sensitivity | 25 mvV/kPa |
The full scale span is 25 mV.
Yes, it provides on-chip temperature compensation over a range of 0°C to +85°C.
The operating characteristics are based on the use of dry air as the pressure media.
