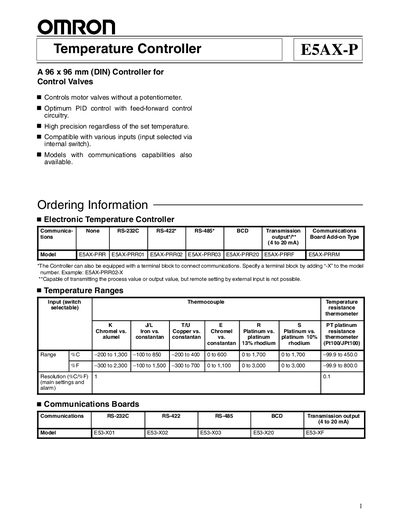

The E5AX-P is a 96 x 96 mm (DIN) controller for control valves, which can control motor valves without a potentiometer. It features optimal PID control with feed-forward control circuitry. Regardless of the set temperature, precision is high. Compatible with various inputs (input selected via internal switch). Models with communications capabilities are also available.
The Omron E5AX-P is a 96 x 96 mm (DIN) electronic temperature controller specifically designed for controlling motor valves without requiring a potentiometer. It features optimum PID control with feed-forward circuitry and offers high precision regardless of the set temperature.
The device supports various input types, including thermocouples (K, J, T, E, R, S, L, U) and platinum resistance thermometers (Pt100/JPt100), selectable via an internal switch. It provides relay outputs for control and alarm functions with auto-tuning capabilities and optional communication boards supporting RS-232C, RS-422, and RS-485 protocols.
| Dimensions | 96 x 96 mm (DIN) |
|---|---|
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | Approx. 10 VA (at 100 VAC) |
| Control Output | Relay output: 3 A, 250 VAC |
| Control Mode | PID control with auto-tuning |
| Setting Accuracy | (40.3% of set value or +1%C, whichever greater) |
| Ambient Temperature Operating | -10 to 55°C |
No, it controls motor valves without a potentiometer.
The controller supports RS-232C, RS-422, and RS-485 communications.
Yes, it is selectable between thermocouples and platinum resistance thermometers via an internal switch.
