500 milliwatt glass sealed zener diodes

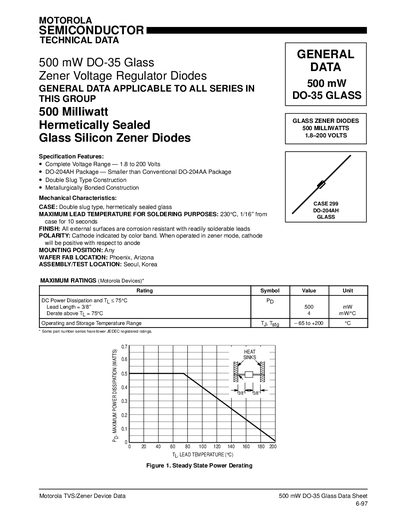

This document provides general technical data applicable to all series within the group of 500 mW DO-35 Glass Zener Voltage Regulator Diodes. The devices feature double slug type construction and are hermetically sealed in glass, offering a complete voltage range from 1.8 to 200 volts.
| DC Power Dissipation (TL < 75°C) | 500 mW |
|---|---|
| Operating Temperature Range | -65 to +200 °C |
| Voltage Range | 1.8 to 200 Volts |
| Maximum Lead Temperature for Soldering | 230°C, 1/16" from case for 10 seconds |
The maximum lead temperature is 230°C at a distance of 1/16" from the case for 10 seconds.
The devices cover a complete voltage range from 1.8 to 200 volts.
