This document is the datasheet of B42822 Bipolar – 85 °C. It mainly introduces the product model, specification, characteristic, application scenario and other information.

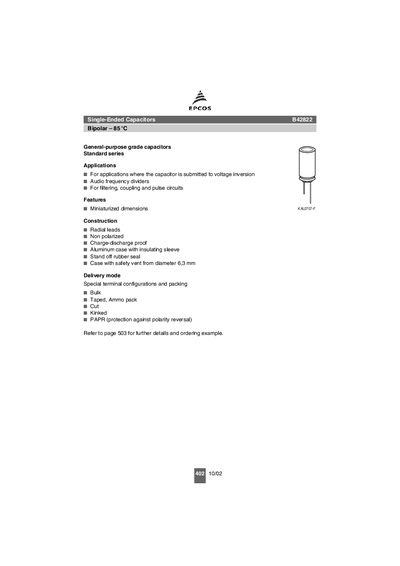

This document is a technical datasheet for the EPCOS B42822 series of bipolar single-ended capacitors. These general-purpose grade components are designed for applications involving voltage inversion, audio frequency dividers, filtering, coupling, and pulse circuits. The capacitors feature miniaturized dimensions, radial leads, and an aluminum case with a safety vent.
| Rated voltage U_r | 10... 100 VDC |
|---|---|
| Surge voltage Us | 1.15 * Up |
| Rated capacitance C_r | 0.47 ... 1 000 uF |
| Capacitance tolerance | +/-20% |
| Useful life at 40°C | > 100 000 h |
They are suitable for voltage inversion, audio frequency dividers, filtering, coupling, and pulse circuits.
The rated voltage is between 10 and 100 VDC, and the rated capacitance is from 0.47 to 1 000 uF.
The actual dimensions are 16.5 x 33.5 mm, and the approximate weight is 78 g.
