This document describes the features and characteristics of aluminum electrolytic capacitors, including high temperature operation, long useful life, high ripple current capability, compact design, and high vibration resistance.

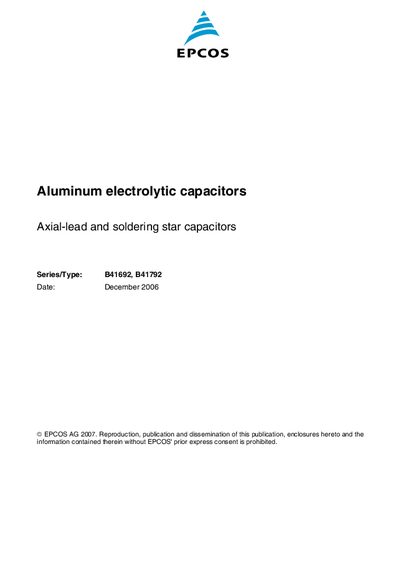

This document provides technical specifications for the EPCOS B41692 and B41792 series of axial-lead and soldering star aluminum electrolytic capacitors. These components are designed for compact designs with a long useful life, supporting operating temperatures up to 150°C at reduced voltage.
| Rated voltage Vp | 25 ... 63 VDC |
|---|---|
| Surge voltage V. | 1.15-Vp |
| Rated capacitance Cp | 220 ... 6800 uF |
| Capacitance tolerance | -10/+30% |
| Operating temperature (reduced voltage) | Up to 150 °C |
| Useful life at 140°C | > 2000 h |
The capacitors support an operating temperature of up to 150°C when applied with reduced voltage.
The capacitors have a useful life of more than 2000 hours at 140°C with rated voltage and 0.6 times rated capacitance.
The leakage current must be less than or equal to 0.006 pA - (F348 aR) +4 A after 5 minutes at 20°C.
