The LTM9004 and LTM9005 are highly integrated RF-to-digital receivers that combine direct conversion and IF sampling architectures with integrated RF, signal filtering, gain stages and high-speed ADCs for more compact, low power designs and dramatically faster time-to-market.

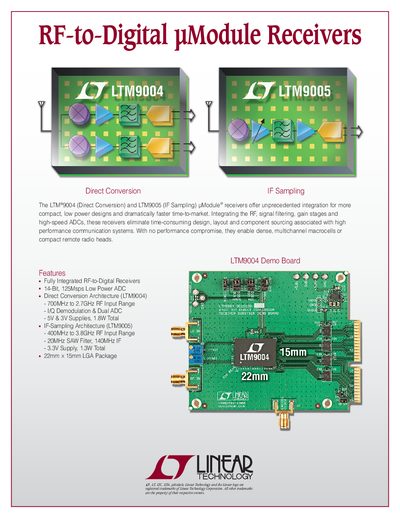

The document introduces the LTM9004 (Direct Conversion) and LTM9005 (IF Sampling) uModule receivers. These devices integrate RF signal filtering, gain stages, and high-speed ADCs to simplify design and reduce component sourcing for dense macrocells or remote radio heads.
| ADC Resolution | 14-Bit |
|---|---|
| ADC Sampling Rate | 125Msps |
| LTM9004 RF Input Range | 700MHz to 2.7GHz |
| LTM9005 RF Input Range | 400MHz to 3.8GHz |
| Package Size | 22mm x 15mm LGA Package |
The LTM9004 supports an RF input range from 700MHz to 2.7GHz.
The LTM9005 operates with a 3.3V supply and consumes 1.3W total.
Both the LTM9004 and LTM9005 come in a 22mm x 15mm LGA package.
