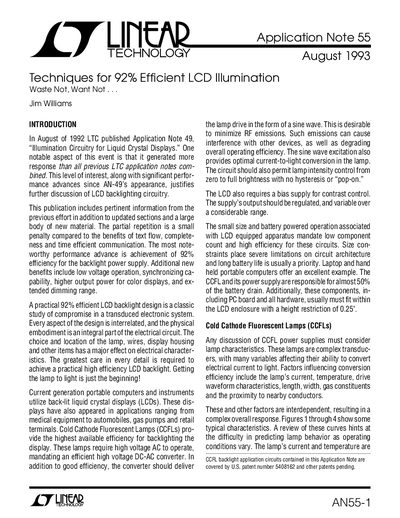

This document introduces how to design a 92% efficient LCD backlight circuit, including circuit principle, power selection, component selection, dimming range and other contents.
This document discusses the design of efficient backlight circuitry for Liquid Crystal Displays (LCDs), specifically focusing on Cold Cathode Fluorescent Lamps (CCFLs). It highlights that CCFLs require high voltage AC operation and mandates an efficient DC-AC converter to minimize RF emissions. The text emphasizes that achieving practical high efficiency requires careful attention to physical details like lamp placement, wire length, and display enclosure design, noting that a poorly designed enclosure can degrade efficiency by 20%.
The note provides technical analysis of CCFL load characteristics, such as their negative resistance behavior which complicates switching regulator stability. It describes specific circuit topologies, including a Royer class converter driven by an LT1172 switching regulator to achieve high efficiency (88% in the example circuit) and smooth dimming from zero to full intensity.
The document describes a practical design that achieves 92% efficiency for the backlight power supply.
Components including the PC board and hardware must fit within the LCD enclosure with a height restriction of 0.25 inches.
The operating voltage for these lamps is usually between 300V and 400V.
