This application note features 8-, 10-, and 12-bit data acquisition components in various circuit configurations

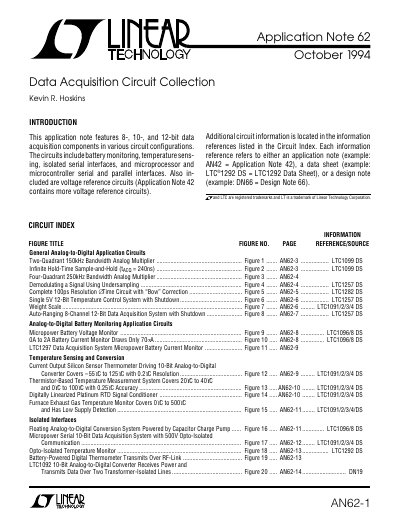

Application Note 62 (AN62) from Linear Technology presents a collection of circuits using 8-, 10-, and 12-bit data acquisition components. The document covers general analog-to-digital application circuits such as two-quadrant analog multipliers, sample-and-hold circuits, and demodulating signals using undersampling.
| Resolution (ADC) | 8-, 10-, and 12-bit |
|---|---|
| Bandwidth (Analog Multiplier) | 150kHz / 250kHz |
| Resolution (Delta Time Circuit) | 100ps |
The note features 8-, 10-, and 12-bit data acquisition components.
Circuits include battery monitoring, temperature sensing, isolated serial interfaces, and microprocessor/microcontroller interfaces.
