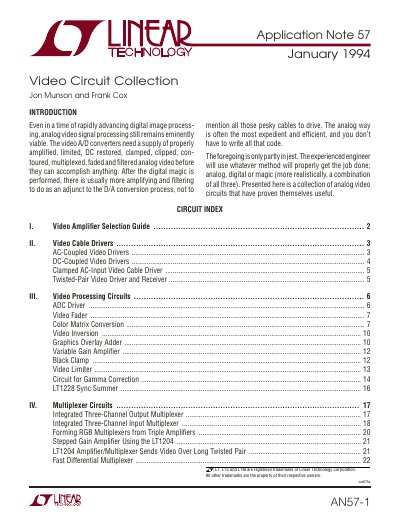

This document presents a collection of proven useful analog video circuits designed for analog video signal processing applications. It serves as a reference for engineers working with video A/D converters and digital-to-analog conversion processes, offering solutions that are often more expedient than purely digital methods.
The note includes specific circuit designs such as AC-coupled and DC-coupled video cable drivers, twisted-pair video drivers, and various video processing circuits. It also provides a detailed selection guide for video amplifiers based on gain-bandwidth product (GBW) and configuration.
| Document Date | January 1994 |
|---|---|
| Amplifier Settling Time (LT6553) | 6ns |
| Slew Rate (LT1818/LT1819) | 900V/µs |
| Differential Gain (LT1395/LT1396/LT1397) | 0.02% |
| Output Current (LT1206) | 250mA |
It presents a collection of analog video circuits that have proven themselves useful for video signal processing.
The analog way is often the most expedient and efficient, avoiding the need to write extensive code.
A 5V supply is generally required because the amplifier output must be able to swing 3.12V P-P.
