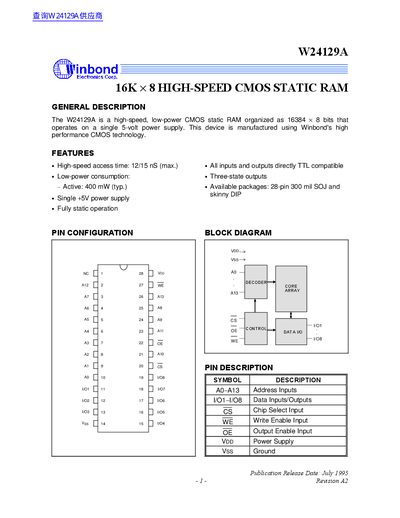

The W24129A is a high-speed, low-power CMOS static RAM organized as 16384 × 8 bits that operates on a single 5-volt power supply. This device is manufactured using Winbond's high performance CMOS technology. Features include high-speed access time, low-power consumption, fully static operation, inputs and outputs directly TTL compatible, three-state outputs.
The W24129A is a high-speed, low-power CMOS static RAM organized as 16384 x 8 bits that operates on a single +5V power supply. It features fully static operation with three-state outputs and is manufactured using Winbond's high-performance CMOS technology.
| Organization | 16384 x 8 bits |
|---|---|
| Operating Voltage | +5V |
| Access Time (W24129A-12) | 12 ns |
| Access Time (W24129A-15) | 15 ns |
| Operating Temperature Range | 0 to +70 °C |
| Storage Temperature Range | -65 to +150 °C |
| Max. Operating Power Dissipation | 1.0 W |
Yes, all inputs and outputs of the device are directly TTL compatible.
The maximum allowable power dissipation is 1.0 W.
The operating temperature range is from 0 to +70 °C.
