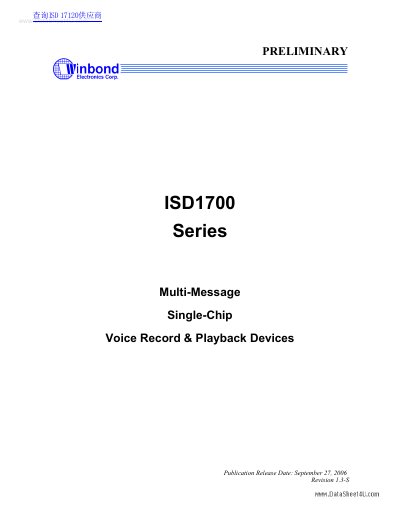

The Winbond ISD1700 Series is a high quality, fully integrated, single-chip multi- message voice record and playback device ideally suited to a variety of electronic systems. The series features programmable multi-channel recording, playback, playback time, recording format, and can be configured as an independent push-button mode or SPI mode.
The Winbond ISD1700 ChipCorder Series is a high-quality, fully integrated, single-chip multi-message voice record and playback device. It supports various operating modes, including standalone (push-button) and SPI mode, allowing for flexible control in electronic systems.
Key features include selectable sampling frequencies from 4 kHz to 12 kHz, message durations ranging from 26 seconds to 120 seconds depending on the specific model, and an operating voltage range of 2.4 V to 5.5 V. The device incorporates a proprietary message management system and supports dual input channels (differential microphone and single-ended analog) with dual output options.
| Operating Voltage | 2.4 V to 5.5 V |
|---|---|
| Sampling Frequency Range | 4 kHz to 12 kHz |
| Message Duration Range | 26 seconds to 120 seconds |
| Operating Temperature (Commercial) | 0 °C to +70 °C (packaged units) |
| Operating Temperature (Industrial) | -40 °C to +85 °C |
The devices operate with a voltage spanning a range from 2.4 V to 5.5 V.
The device provides a typical message retention of 100 years.
The device supports a typical 100,000 record cycles.
