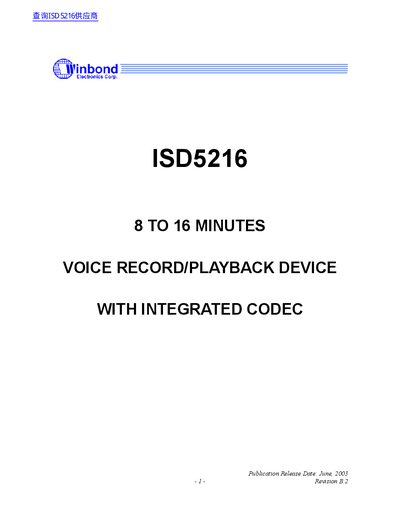

The ChipCorder ISD5216 is an 8 to 16 minute Voice and Data Record and Playback system with integrated Voice band CODEC.
The Winbond ISD5216 is a single-chip voice and data record and playback system featuring an integrated voice band CODEC. It operates on a single 2.7V to 3.3V supply and includes fully integrated system functions such as AGC, a microphone preamplifier, a speaker driver, and memory. The device supports configurable sampling rates of 4 kHz, 5.3 kHz, 6.4 kHz, and 8 kHz, with message durations of 8, 10, 12, and 16 minutes.
| Supply Voltage | 2.7 to 3.3 Volt |
|---|---|
| Message Duration | 8, 10, 12 and 16 minutes |
| Sampling Rates | 4 KHz, 5.3kHz, 6.4 kHz and 8kHz |
| Message Retention | 100 year |
| Analog Record Cycles | 100K |
| Digital Record Cycles | 10K |
| CODEC Type | Linear 14 bit |
The device operates on a single 2.7V to 3.3V supply.
The device supports 8, 10, 12, and 16 minutes duration.
Sampling rates can be configured at 4 KHz, 5.3kHz, 6.4 kHz, and 8kHz.
