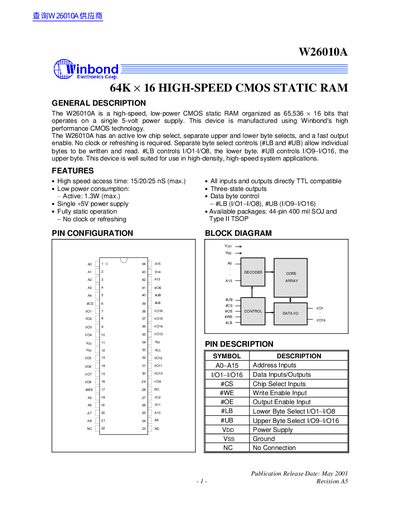

W26010A is a high-speed, low-power CMOS static RAM organized as 65,536 × 16 bits that operates on a single 5-volt power supply. The device is manufactured using Winbond's high performance CMOS technology. It has low power consumption, high speed, single power supply, etc. It is well suited for use in high-density, high-speed system applications.
The W26010A is a high-speed, low-power CMOS static RAM organized as 65,536 x 16 bits. It operates on a single 5-volt power supply and is manufactured using Winbond's high-performance CMOS technology. The device features an active low chip select, separate upper and lower byte selects, and a fast output enable, requiring no clock or refreshing.
| Organization | 65,536 x 16 bits |
|---|---|
| Power Supply | Single +5V |
| Operating Temperature (Standard) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Access Time (Max) | 15/20/25 ns |
| Active Power Consumption | 1.3W (max.) |
No, the device does not require a clock or refreshing.
Separate byte select controls (#LB and #UB) allow individual bytes to be written and read.
The device supports standard operation from 0 to +70 °C and industrial operation from -40 to +85 °C.
