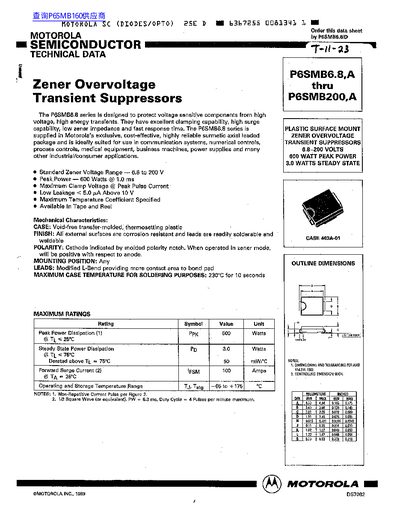

MOTOROLA Semiconductor P6SMB6.8 A thru P6SMB200 A TECHNICAL DATA

P6SMB160 is a type of P6SMB series and a MOSFET device launched by ON Semiconductor.

Brand: Motorola
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 247 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 95856CA2ED990166F7AB62896047CD97
PDF: MOTOROLA Semiconductor P6SMB6.8 A thru P6SMB200 A TECHNICAL DATA PDF

About this manual

The Motorola P6SMB6.8 series consists of Zener Overvoltage Transient Suppressors designed to protect voltage-sensitive components from high-voltage, high-energy transients. These devices feature excellent clamping capability and fast response time, available in a cost-effective surmetic axial leaded package or plastic surface mount configuration.

What's inside

Mechanical Characteristics
Maximum Ratings
Electrical Characteristics
Response Time
Typical Protection Circuit

Specifications

Peak Power Dissipation	600 Watts @ TL = 25C
Steady State Power Dissipation	3.0 Watts @ TL = 75C
Operating and Storage Temperature Range	-65 to +175 C

Frequently asked questions

What is the peak power rating of the P6SMB6.8 Series?

The device has a peak power dissipation of 600 Watts at an ambient temperature of 25C.

What is the maximum case temperature for soldering purposes?

The maximum case temperature allowed for soldering is 230C for a duration of 10 seconds.
