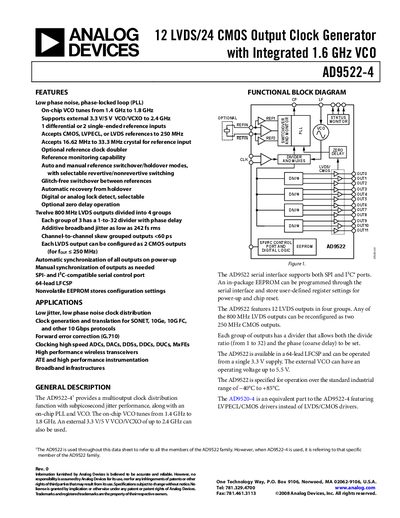

The AD9522-4 is a 12 LVDS/24 CMOS output clock generator with integrated 1.6 GHz VCO.
The AD9522-4 is a multioutput clock distribution device featuring subpicosecond jitter performance, an on-chip PLL, and a Voltage-Controlled Oscillator (VCO) that tunes from 1.4 GHz to 1.8 GHz. It supports external VCOs up to 2.4 GHz and accepts various reference inputs including CMOS, LVPECL, or LVDS signals.
| VCO Frequency Range (On-Chip) | 1.4 GHz to 1.8 GHz |
|---|---|
| Number of LVDS Outputs | 12 |
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage (VS) | 3.135 V to 3.465 V |
The on-chip VCO tunes from 1.4 GHz to 1.8 GHz.
The device accepts CMOS, LVPECL, or LVDS references up to 250 MHz.
Yes, it supports an external 3.3 V/5 V VCO/VCXO up to 2.4 GHz.
