ADR01/ADR02/ADR03/ADR06 are ultracompact 10 V/5 V/2.5 V/3.0 V voltage references, featuring low temperature drift, low noise, high output current and wide operating range.

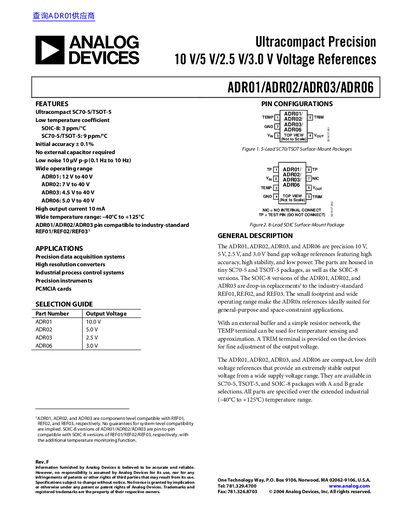

The document describes the ADR01, ADR02, ADR03, and ADR06 as ultracompact precision bandgap voltage references available in SC70-5, TSOT-5, and SOIC-8 packages. These devices offer high accuracy, low temperature coefficients, and operate over a wide supply voltage range without requiring external capacitors.
| Output Voltage (ADR01) | 10.0 V |
|---|---|
| Output Voltage (ADR02) | 5.0 V |
| Output Voltage (ADR03) | 2.5 V |
| Output Voltage (ADR06) | 3.0 V |
| Temperature Range | -40°C to +125°C |
| Quiescent Current (No Load) | 0.65 mA |
| Voltage Noise Density | 510 nV/√Hz @ 1 kHz (ADR01) |
Yes, the ADR01 is component-level compatible to industry-standard REF01.
No, they do not require external capacitors.
